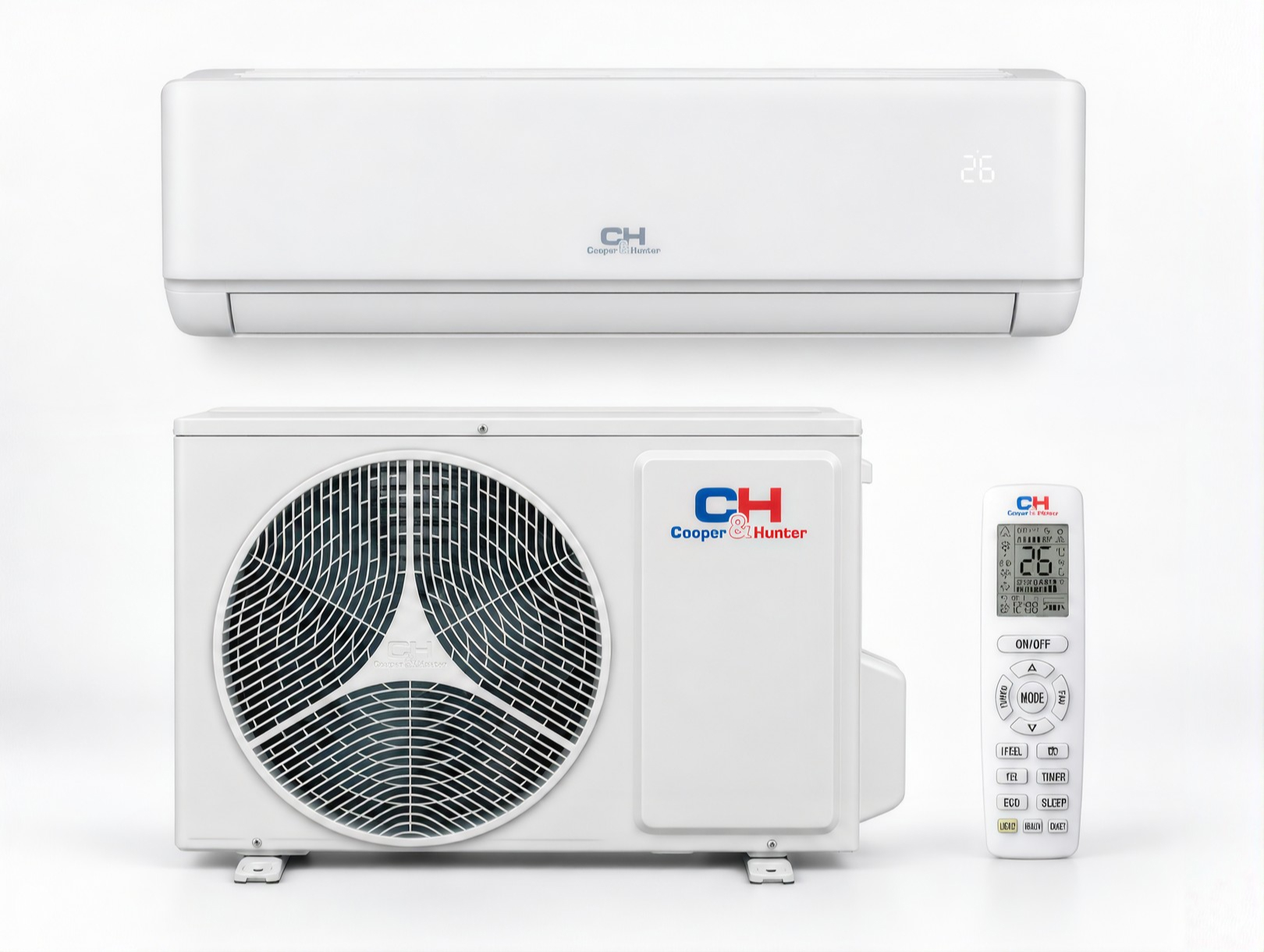

VITAL Plus Series CH-S24FTXF6

Wired control – Possibility to connect a wired remote control
Dry contact – Possibility to connect a dry contact
Self-cleaning IDU – The function of self-cleaning of the indoor unit by freezing and heating in sequence
Plasma ion – CH-Ion filter, ionizer
Left-right Indoor louver control – Control of the louvers from right to left from the remote control
Additional filters – additional 7-sky filters

cooling	6.20 (1.80-6.90) kW
Heating	6.50 (1.30-7.00) kW

32fe5926db7457b00933b600335dd3d4

Data	Mode	Item	CH-S24FTXF6
Capacity	cooling	kW	6.20 (1.80-6.90)
Capacity	heating	kW	6.50 (1.30-7.00)
Power supply	–	V/Hz/~	~ 220-240/50//1
Rated power	cooling	kW	1.79 (0.45-2.30)
Rated power	heating	kW	1.65 (0.45-2.30)
Airflow rate	–	m³/h	540/590/640/690/740/900/1050
Sound level	IDU	dB(А)	32/36/40/42/44/46/50
Sound level	ODU	dB(А)	59
Refrigerant type	–	–	R32
Dimensions(w/o pack)	IDU	mm	978Х333Х248
Dimensions(w/o pack)	ODU	mm	873Х555Х376
Dimensions(with pack)	IDU	mm	1038X406X329
Dimensions(with pack)	ODU	mm	951X431X620
Net weight	IDU	kg	14
Net weight	ODU	kg	26,5
Gross weight	IDU	kg	16,5
Gross weight	ODU	kg	29,5
Compressor type	–	–	Rotary
Dehumidification	–	l/h	1,8
Charge	–	kg	1,21
Temperature range	cooling	°С	-15~43
Temperature range	heating	–	15~24
Liquid pipe diameter	–	inch	1/4
Gas pipe diameter	–	inch	1/2
Max pipeline level difference	–	m	10
Pipeline max length	–	m	25
Fixing distance	ODU	mm	528
