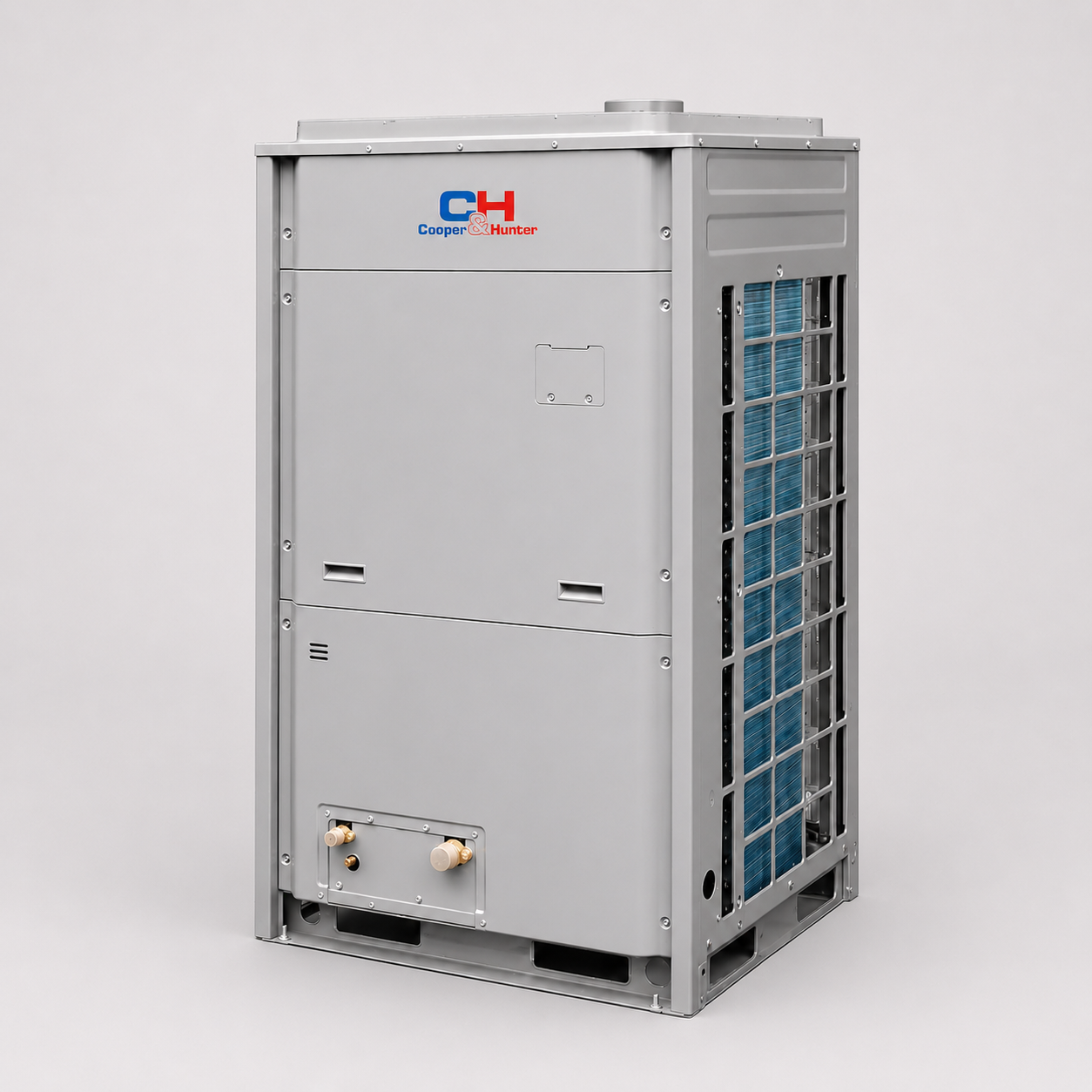

Cooper & Hunter CH-HP30CMFNM Heat Pump

The Cooper & Hunter CH-HP30CMFNM is a high-capacity water-source heat pump designed for efficient heating with compact dimensions and easy installation. It features a reliable Danfoss scroll compressor, corrosion-resistant heat exchanger, and supports multi-unit system integration.

Key Features

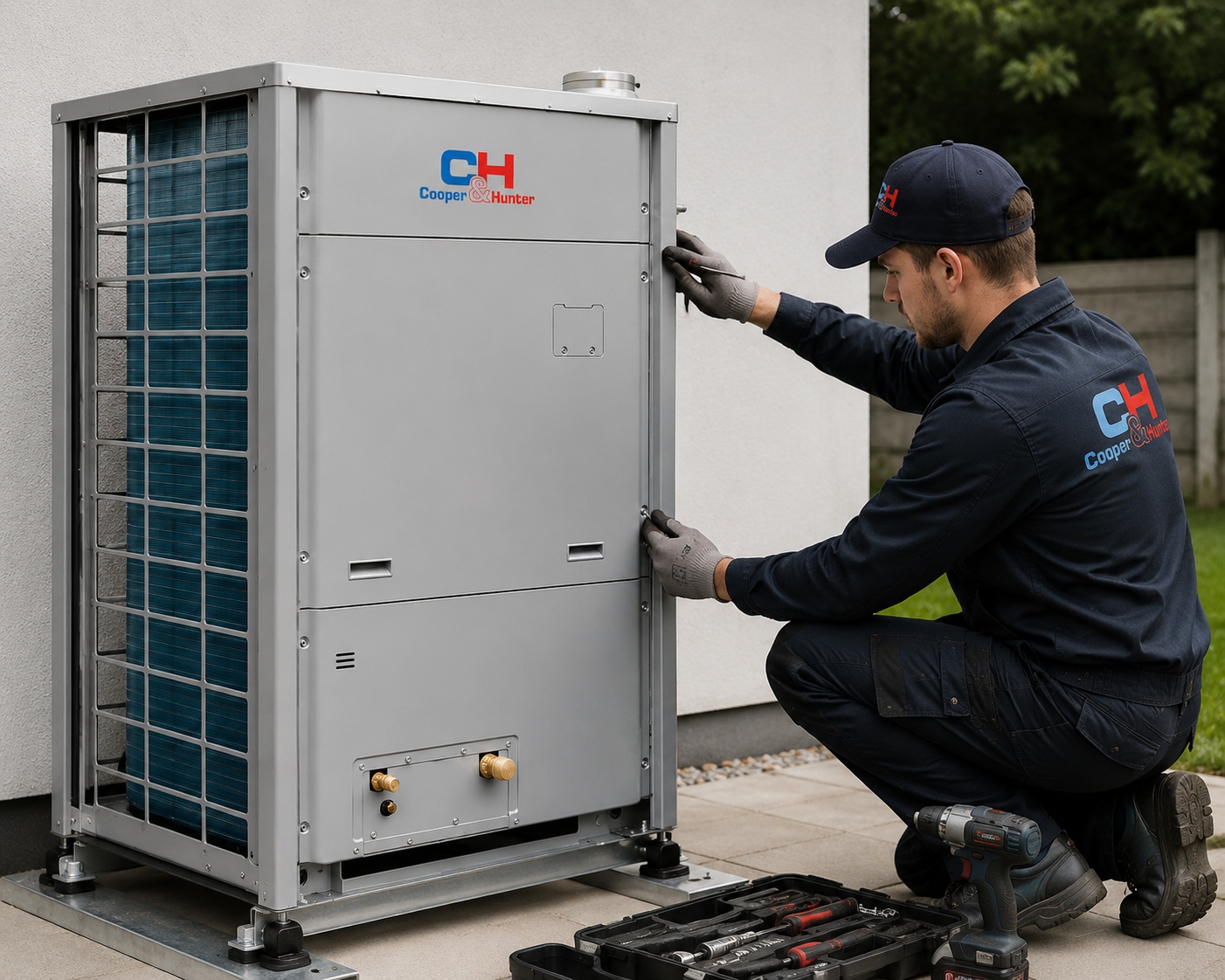

Easy installation with compact dimensions.

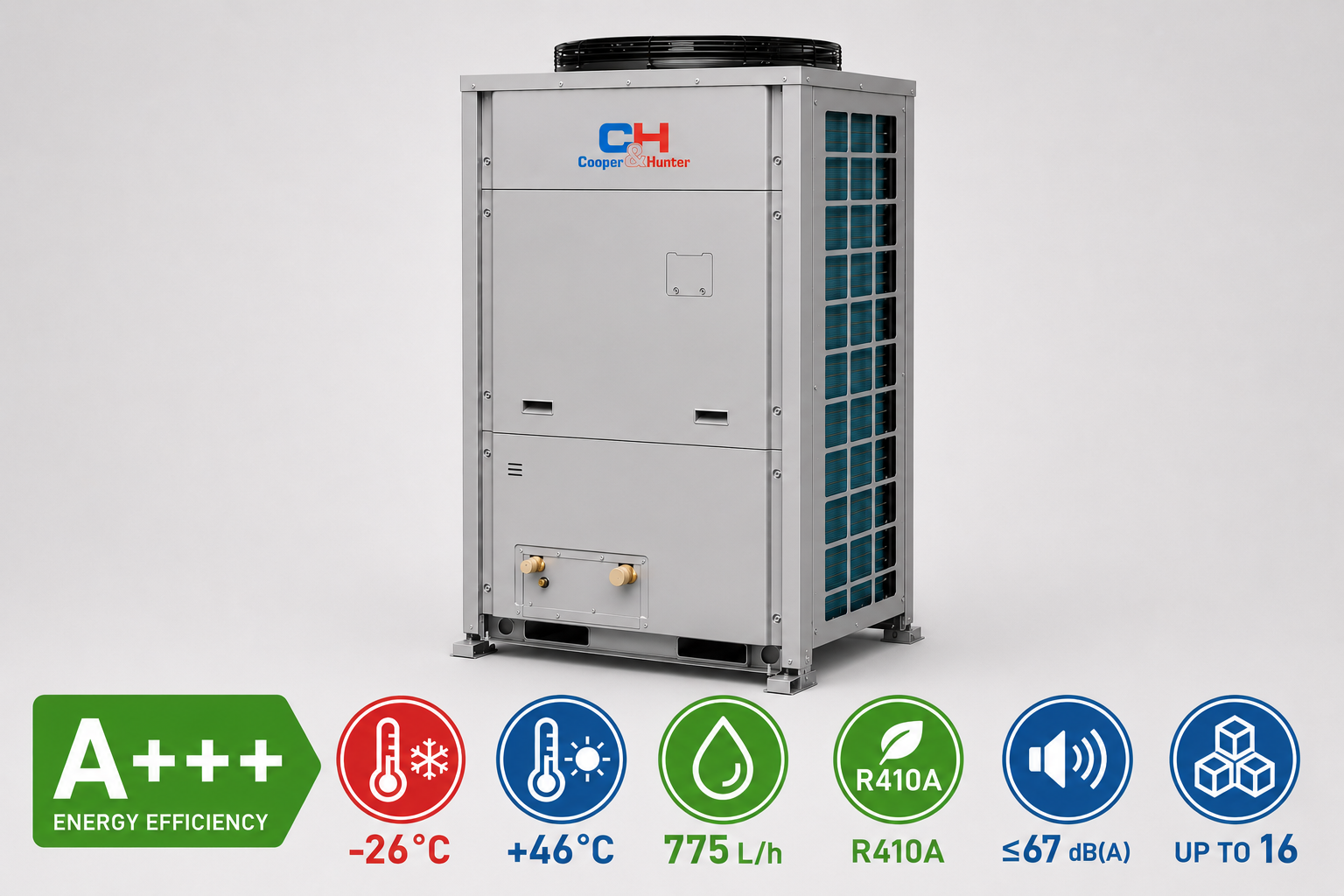

Wide operating temperature range: -26°C to +46°C.

Fast water heating for domestic hot water (DHW).

High-efficiency Danfoss scroll compressor with excellent COP.

Corrosion-resistant heat exchanger for long-term durability.

Low noise operation.

Supports up to 16 units in one system, up to 0.768 MW total capacity.

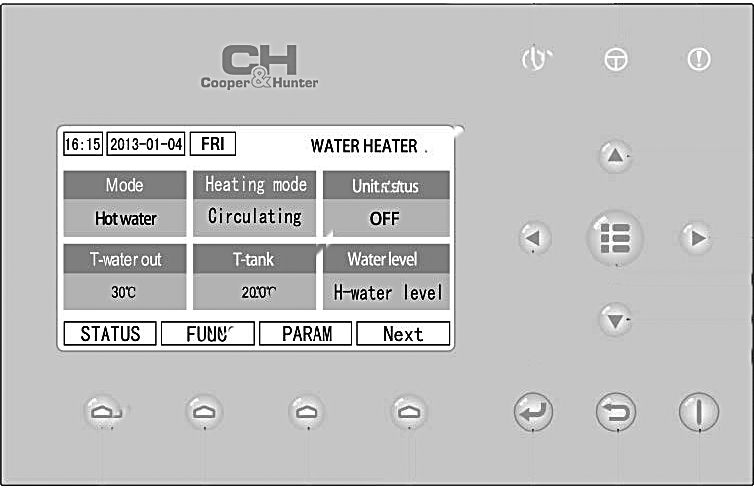

Group control available for multi-unit systems.

Technical Specifications
Parameter Unit Value
Heating Capacity kW 29.77
Power Consumption kW 8.87
Current Consumption A 16.9
COP - 3.35
Nominal DHW Flow L/h 775
DHW Temperature Range °C 35–70
Power Supply V / Hz / Ph 380–415 / 50 / 3
Circuit Breaker A 25
Power Cable Size mm² 5×4.0
Refrigerant Type - R-410A
Refrigerant Charge kg 4.2
Compressor Type - Scroll
Number of Compressors pcs 1
Operating Temperature Range °C -26 ~ +46
Water Pipe Connections – Inlet Inch 1 1/4"
Water Pipe Connections – Outlet Inch 1 1/4"
Sound Pressure Level dB(A) 67
Net Weight kg 260
Dimensions (W×H×D) – Unit mm 930×800×1605
Dimensions (W×H×D) – Packaged mm 1010×865×1775
