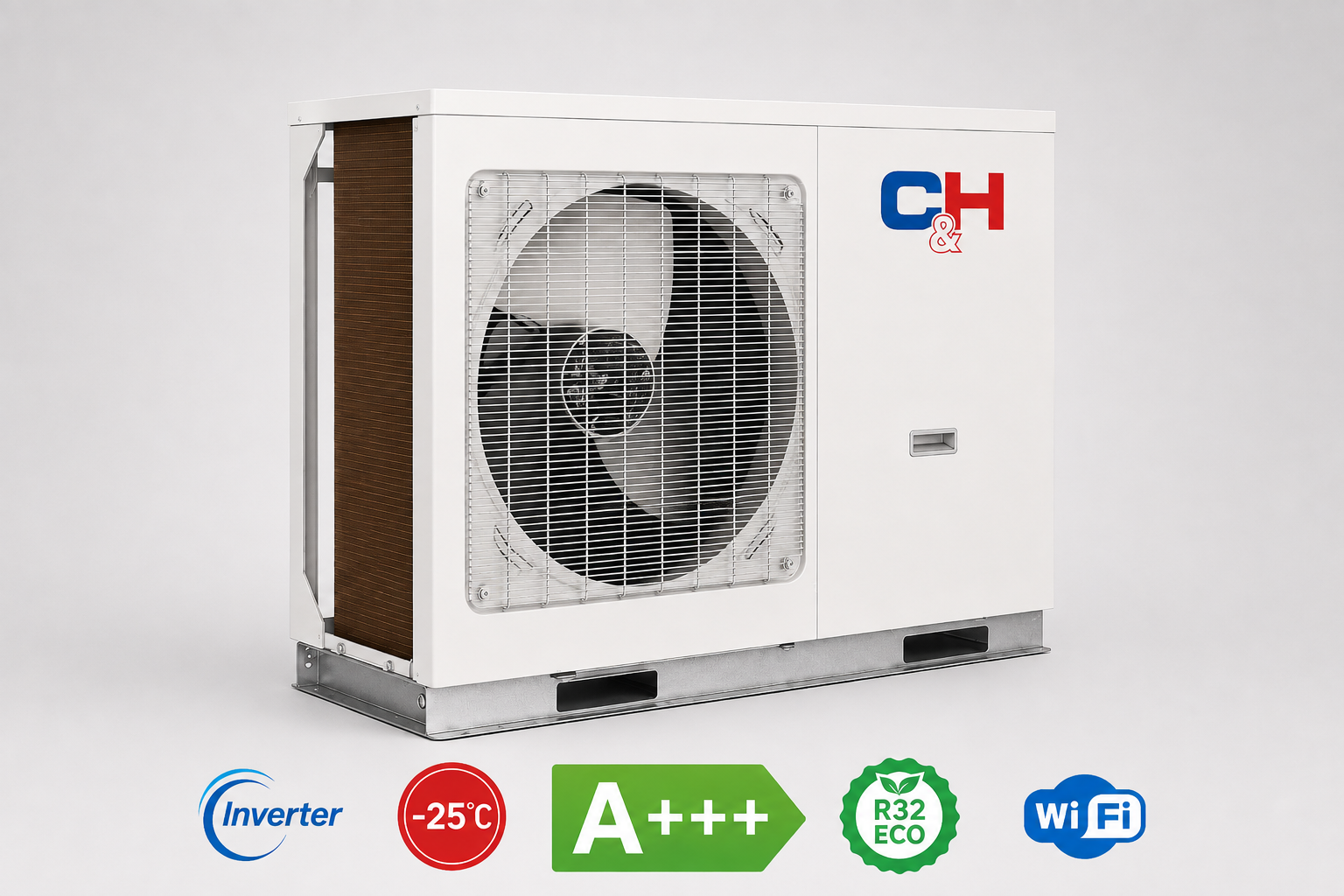

Cooper & Hunter UNITHERM MONOTYPE CH-HP16MIRM Heat Pump

The Cooper & Hunter UNITHERM MONOTYPE CH-HP16MIRM is a high-efficiency A-class inverter water heat pump compliant with European ErP standards. Its smart inverter technology adjusts the operating frequency based on actual load, improving efficiency and providing precise water temperature control. The all-in-one design allows integration with underfloor heating, radiators, fan coils, and solar collector systems, offering flexible and reliable heating and cooling solutions.

Key Features

High-efficiency A-class inverter water pump for precise water temperature control.

Inverter fan motor regulates airflow through the heat exchanger for stable operation and energy savings.

High-performance plate heat exchanger enhances heat pump performance.

All-in-one design integrates easily with underfloor heating, radiators, fan coils, and solar collector systems.

Reduces installation costs, minimizes refrigerant leak risks, and ensures system safety and reliability.

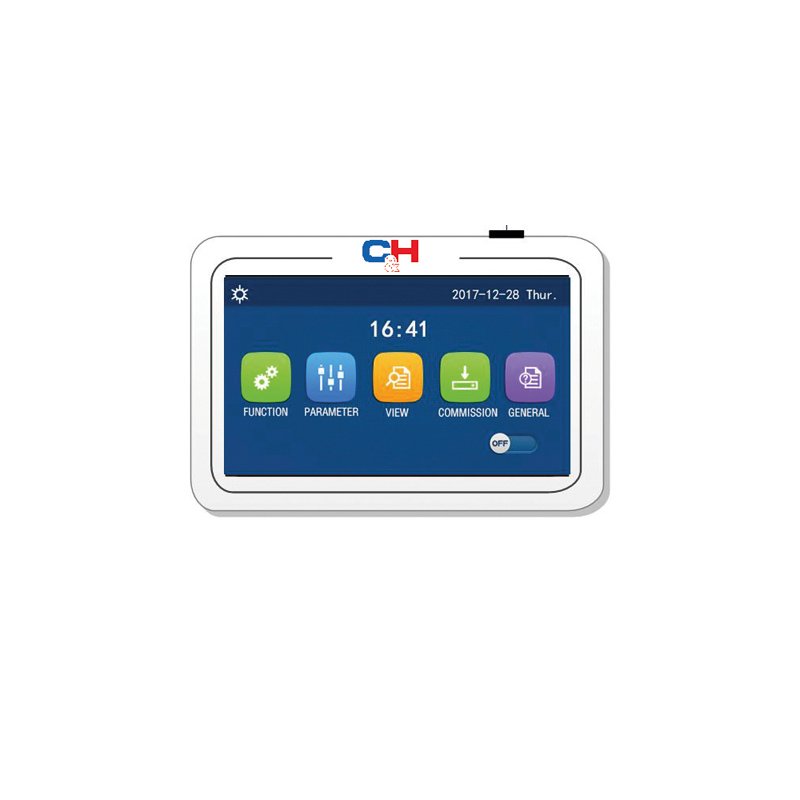

Stylish wall-mounted wired controller with LCD touch display.

Remote monitoring interface via Modbus, compatible with BMS systems.

Intelligent control modes, including rest mode, weather-dependent mode, temperature timers, and on/off scheduling.

Advanced defrost program adapts defrost duration based on frost level for stable heating performance.

Multiple safety protections ensure reliable operation.

Technical Specifications
Parameter Unit Underfloor Heating Fan Coils / Radiators
Cooling Capacity kW 14.5 13.0
Heating Capacity kW 15.5 15.5
Power Consumption (Cooling) kW 3.82 4.73
Power Consumption (Heating) kW 3.60 4.70
EER (Cooling Efficiency) - 4.0 2.9
COP (Heating Efficiency) - 4.35 3.55
Refrigerant Charge kg 2.2 -
DHW Water Temperature °C 40–80 -
Sound Pressure Level (Cooling) dB(A) 59 -
Sound Pressure Level (Heating) dB(A) 61 -
Operating Temperature Range (Cooling) °C 10–48 -
Operating Temperature Range (Heating) °C -30–35 -
Operating Temperature Range (DHW) °C -30–45 -
Water Pipe Diameter (Inlet/Outlet) inch 1" external thread 1" external thread
Dimensions (W×D×H) – Unit mm 1200×460×878 -
Dimensions (W×D×H) – Packaged mm 1288×588×1020 -
Net Weight kg 151 -
Gross Weight kg 166 -
Power Supply V / Hz / Ph 380–415 / 50 / 3 -
