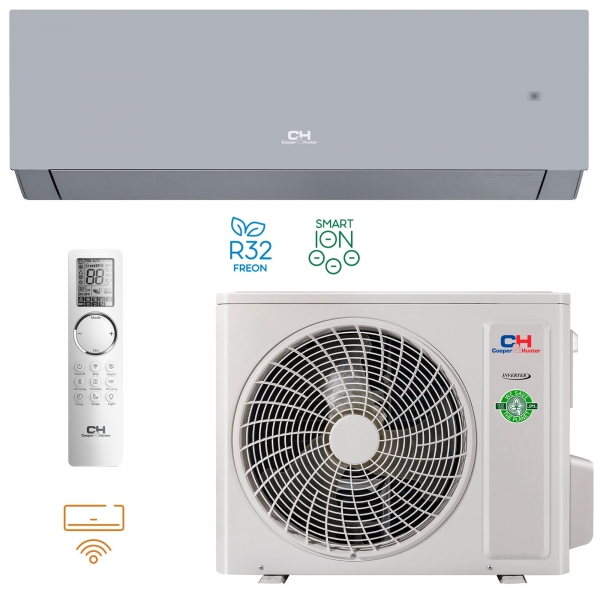

The CH-S09FTXAM-GD/SC is a wall-mounted inverter heat pump / split air conditioner from the Majesty Series.
It is suitable for rooms up to ~ 25 m², offering both cooling and heating capabilities, with high efficiency, low noise, and a modern design.

🔧 Key Specifications
Feature Value
Cooling Capacity 2.70 kW
Heating Capacity 3.00 kW
Rated Power (Cooling) 0.67 kW
Rated Power (Heating) 0.68 kW
Airflow (Indoor Unit) 610 / 570 / 540 / 470 / 440 / 420 / 390 / 180 m³/h
Indoor Noise Levels (min → max) 19 / 22 / 23 / 26 / 31 / 34 / 37 / 38 dB(A)
Outdoor Noise Level 50 dB(A)
Refrigerant R-32
Operating Temperature Range (Cooling) –15 °C to +50 °C
Operating Temperature Range (Heating) –25 °C to +30 °C
Indoor Unit Dimensions (W × H × D) 837 × 293 × 200 mm
Outdoor Unit Dimensions (W × H × D) 732 × 555 × 330 mm
Indoor Unit Weight (net / gross) 9.5 kg / 11.5 kg
Outdoor Unit Weight (net / gross) 25 kg / 27.5 kg
Refrigerant Charge (factory) 0.53 kg
Liquid Pipe Connection 6.38 mm (¼")
Gas Pipe Connection 9.53 mm (3/8")
Maximum Piping Height Difference 10 m
Maximum Piping Length 15 m

✨ Additional Features & Notes
Uses “one-piece plastic casing” with advanced seamless heat exchanger technology for reduced noise and better durability.
In cooling mode, it operates down to –15 °C; in heating mode, it functions down to –25 °C.
CH UV Cleaner built-in ultraviolet purification for better air hygiene.
Wi-Fi module included for remote control via smartphone / tablet (Android / iOS).
Very low minimum indoor noise level of 19 dB(A).
Complies with European ErP directives, labeled with high efficiency (SEER A+++ / SCOP A+++) in marketing.
