📋 Key Specifications
Spec Value
Cooling Capacity 20.00 kW
Heating Capacity 23.00 kW
Power Supply ~ 380–415 V, 50 Hz, 3-phase
Power Consumption 7.4 kW (cooling) / 7.3 kW (heating)
Airflow Rate 3,800 m³/h
Static Pressure (Nominal / Max) 125 / 250 Pa
Refrigerant R-410A
Refrigerant Charge 5.50 kg
Indoor Unit Dimensions (W × H × D) 1,334 × 632 × 363 mm
Outdoor Unit Dimensions (W × H × D) 940 × 1,430 × 320 mm
Indoor / Outdoor Weights 82 kg / 115 kg
Operating Temperatures Cooling: –7 °C to +48 °C
Heating: –15 °C to +24 °C
Max Piping Length 70 m
Max Elevation Difference 40 m

✨ Features & Highlights

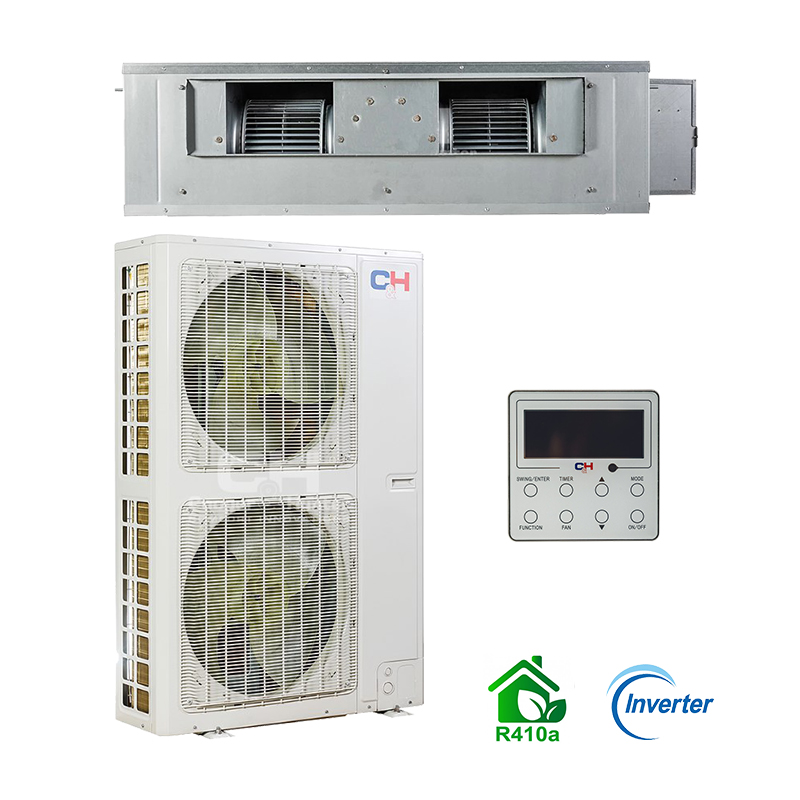

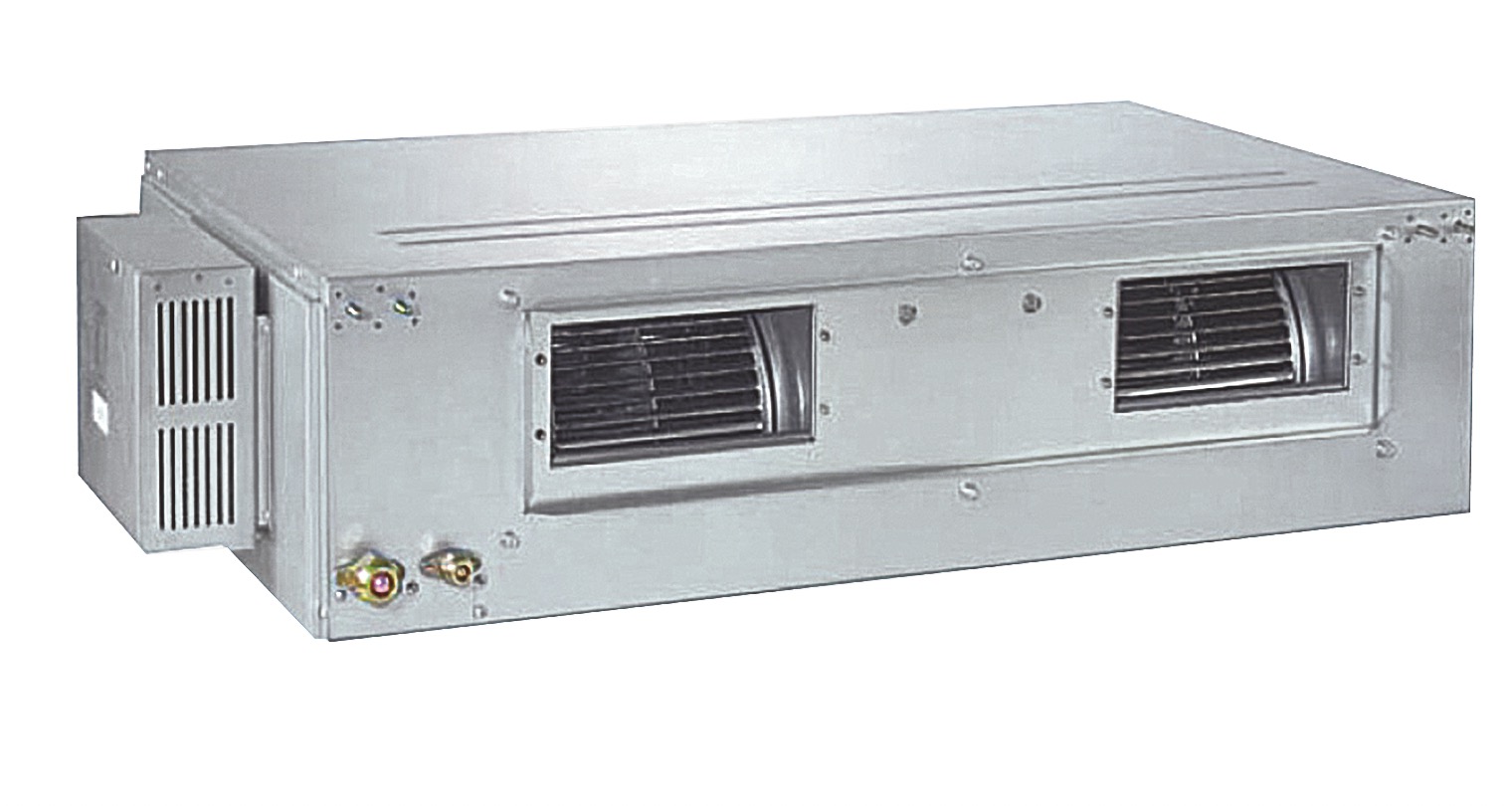

A big duct split / high-static ducted design, suitable for large commercial or institutional spaces.
Supports adjustable external static pressure to accommodate long duct runs.
Inverter technology, which optimizes energy use and performance.
Designed for deep cooling / heating operation even in cooler outdoor conditions.
Comes with standard functions like auto restart, self-diagnosis, timer, etc.
