🏷️ Overview

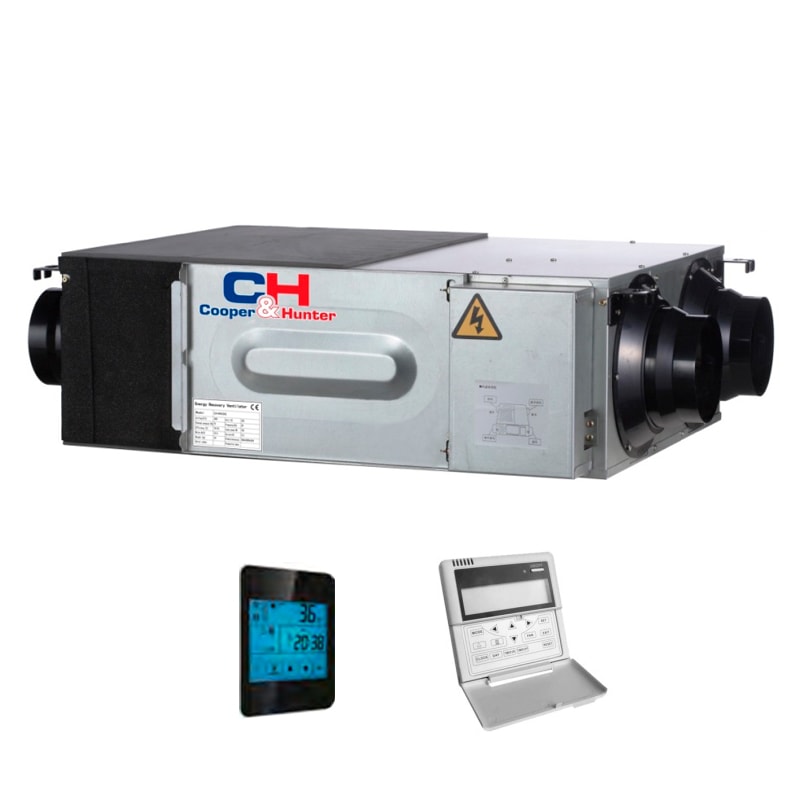

The CH-HRV2K2 is a compact air-handling unit featuring heat recovery (recuperation). It is designed as a supply & exhaust ventilation system that recovers heat from the exhaust air to pre-heat the incoming fresh air, improving energy efficiency.
This model is intended for relatively modest ventilation needs (e.g., apartments, small offices), and includes features like a bypass (for summer cooling), three fan speeds, filters on both intake & exhaust, and relatively quiet operation.

🔧 Key Specifications
Here are some of the important technical specs for the CH-HRV2K2:
Parameter Value
Airflow (Low / Medium / High) ~ 150 / 200 / 200 m³/h
External Static Pressure ~ 60 / 70 / 75 Pa
Heat Exchange Efficiency (Temperature) ~ 60 % (low) / ~ 55 % (med) / ~ 55 % (high)
Enthalpy Exchange Efficiency (Heating) ~ 63 % (low) / ~ 59 % (med) / ~ 59 % (high)
Enthalpy Exchange Efficiency (Cooling) ~ 75 % (low) / ~ 70 % (med) / ~ 70 % (high)
Power Consumption ~ 105 W
Noise Level (Sound Pressure Level) ~ 46 dB(A) in one source
Weight ~ 23 kg
Dimensions (W × H × D) ~ 666 × 580 × 264 mm
Power Supply 220-240 V / 1 Phase / 50 Hz
